1.Specification:

Operating Voltage	3.0VDC ~4.2VDC
Static standby current	2.0μA
GPS accuracy	5-15m(Depending on signal strength)
BSL accuracy	150m(Depending on base station density)
GPS frequency	1575MHz
GSM frequency	850/900/1800/1900MHz
Size (mm)	85.0*46.0*20.5
Weight	92 g
Working temperature	-20℃~65℃

2.Product Functions

• ◇ Mini size, easy and convenient to install.
• ◇ Work mode：   Chase mode / alarm mode / week mode / timing mode
• ◇ Built-in low-power battery, constant operating voltage, suitable for a variety of locomotive use.
• ◇ GPS satellite // LBS base station dual mode positioning, GPRS real time reporting.
• ◇ High sensitivity light sensor, the machine was artificially removed will alarm.
• ◇ Built-in antenna, reliable work
• ◇ Built-in 3D acceleration vibration sensor.
• ◇ Built-in 3200mAh rechargeable lithium-ion polymer battery.

3.Install Simcard



• 2. Boot test

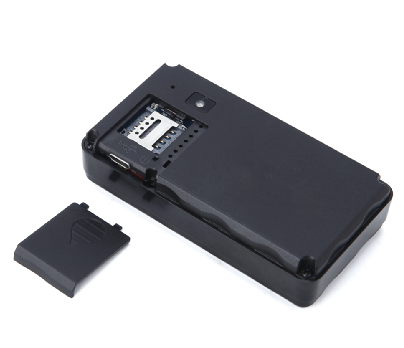

• 2.1.1 Open card cover

• 2.1.2 Insert MICRO SIM card

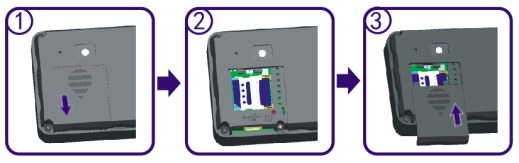

• 1) Push the iron cover in the direction of the arrow.

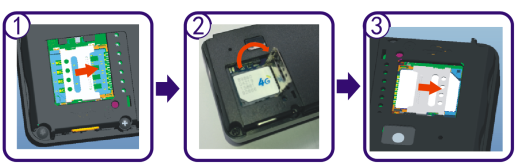

• 2) Turn the iron cover back and install the SIM card.
• 3) Push back the iron cover, and fasten it.

• 2.2 Boot

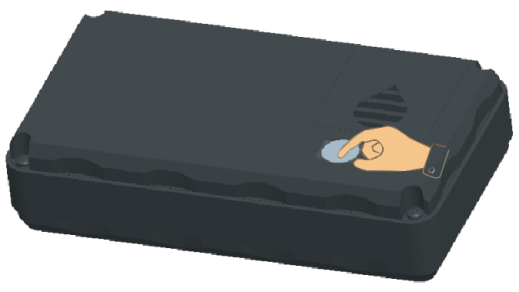

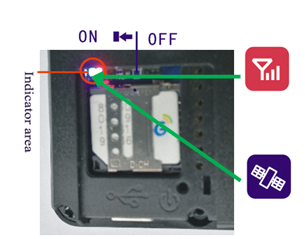

Install the SIM card device, according to the following figure, use a little bit of the tool toggle the slide switch, make the machine power on, and observe the light state.When you turn off it, you need to move back and force twice the reverse OFF button.

• 2.3 Indicator status
• 2.3.1 Red light（GSM status indication）

Quick flash	Search internet or upload data
Slow flash	GSM normal work
Extinguished	Turn off after 10 minutes (optional)

• 2.3.2 Blue light（GPS status indication）

Quick flash	GPS Searching for satellites
Slow flash	GPS Location is successful
Extinguished	Turn off after 10 minutes (optional)

• 3. Device Installation
• 3.1 Before installing, record the ID number or IMEI number on the code mark first. And then remove the release paper, as shown below.

Note：The bar code is the IMEI number, and the two-dimensional code is the ID number.

• 3.2 This product is not waterproof, must be installed in the indoor or shelter. And be attention that the top side face the sky, to ensure that the GPS antenna signal transceiver.

4.SMS Command

• Command format:command,password, parameter...
• Note: password is machine operation password, the default value is 123456 Common commands:
• 1) Set the normal chase positioning mode. SMS command: mode, 123456,1
• Command notes:The default is to report data every 5 minutes.
• 2) Set the alarm positioning mode. SMS command:
• mode,123456,8,0830,1030,1215,1300
• Command notes:08:30，10:30，12:15，13:00 wake up
• 3) Set the next day positioning mode. SMS command: mode,123456,9,1030,3
• Command note: means every 3 days, 10:30 wake up
• 4) Set the week positioning mode. SMS command: mode,123456,10,1130,2,4,6
• Command notes: Tuesday, Saturday, Saturday 11:30 wake up
• 5) Set the monthly positioning mode SMS command: mode,123456,11,0930,15
• Command notes: Every 15th, 09:30 wake up
• 6) Set the light sensor tamper alarm. SMS command: displace,123456,1
• Command notes: Set the light sensor tamper

5.FAQ

• Q: What is satellite positioning and base station positioning?
• A: GPS is the "global satellite positioning system", GPS equipment can be carried out in the outdoor satellite positioning.
• LBS base station positioning through mobile or Unicom operator base station network signal positioning, are auxiliary positioning.
• Q: Positioning is not accurate.
• A: If you need precise positioning, need to use the device in the outdoor GPS signal area, and open the corresponding mode of operation, indoor and other non-GPS signal area is dependent on the base station positioning,the accuracy is slightly worse.
• Q: Platform Offline?
• A: The following conditions will lead to the platform off-line, please check
• 1)SIM card arrears or no card 2) Area GSM signal is weak or no signal.
• Q: The command is invalid.
• A: may be the following reasons
• 1)Check that the instruction format is correct.
• 2) The vehicle is in a GSM network with no signal or weak signal area.
• 3) The battery is over used
