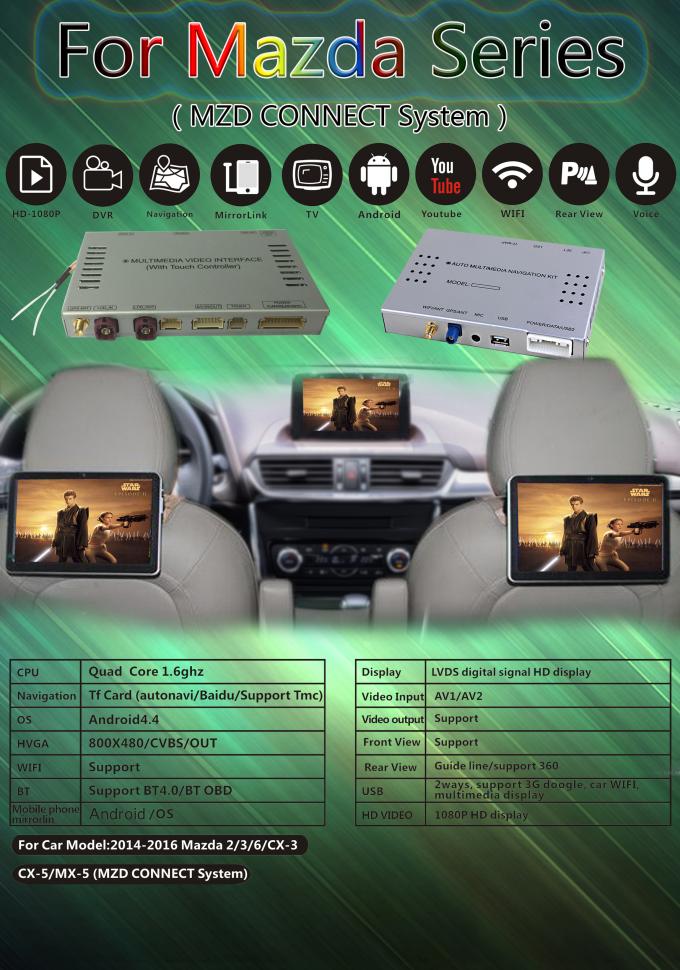

Car Android Navigation System Video Interface box For Mazda2,3,6,CX-3,CX-5,CX-9,MX-5;Upgrade Touch Navigation, Android Headrest Screen, WIFI,BT, MirrorLink,HD 1080P,Google MAP, Play Store,Voice.

• Brand: Noran International
• Model: LLT-MZD-VER6.5.1
• Standard Configuration: Video Interface (Trajectory Reversing,Front View,Video Input)and Android Navigation Box;
• Suitable car model:2014-2016 Mazda2,3,6,CX-3,CX-5,CX-9,MX-5(Car MZD Connect System)
• Upgrading Function:Touch Android Navigation System, Android Headrest Screen,Trajectory Reversing,Front View,DVD,TV,360 Panoramic,DVR,TMPS etc.
• SIZE:155*90*20 (MM)x2
• GR. WT:2KG/SET

Custom Properties

• Way to Install:Original Car Screen Installation
• DVR IN:Support
• Car SideView:Support
• Interface V out:V-out
• Front View:Support
• CPU:1.6GHZ
• Flash:8GB and 16GB
• Working voltage:9-12V
• HVGA:800X480
• Play Store:Support
• WI-FI:Support
• BT:Support
• Advantage:Retains All Car Features
• Rear View:Support
• AV IN:AV1/AV2
• Android Out:RGB(800)and V Out
• 360:Optional
• RAM:1GB/2GB
• HD Video:720P/1080P
• OS:Android/4.4.4
• MAP:GOOGLE MAP/IGO
• Voice:Support
• Specific Features:3 Screen Interactive/ Android Headrest Screen
• MirrorLink:Support

Product Description

• 1. Apply to: 2014-2016 Mazda2,3,6,CX-3,CX-5,CX-9,MX-5(Car MZD Connect System)
• 2. Supports external video input,full touch DVD,Android system;
• 3. Multiple Switching ways:long press screen,double sliding,party control,etc；
• 4. Full-digital circuit, LVDS signal processing, achieve high-definition images；
• 5. Navigation voice optional (the original car/separate speakers).Input all voice into the original car audio system! Achieve perfect sound;
• 6. Support trajectory reverse, Support front video input. You can choose to install 360 bird's eye view panoramic, truly achieve parking without blind area;
• 7. It’s convenient for drivers and passengers to enjoy different entertainment programs since the foreground-background work independently;
• 8. Optional external RGB (800 x480) input,Andrews system connection,HD display;
• 9. UI of the original car UI,matching the original car style,integrated the original car system;
• 10. Full pull-in installation,realize nondestructive installation;

Interface Parameter

• Model:LLT-MZD-VER6.5.1
• Brand:(Noran International)
• Car Screen Size:7 "
• Type:Silver interface box
• Display:LVDS/GVIF Signal transmission(The Board)
• RGB Input:One
• AV Input:Two:AV1 and AV2
• V OUT:Two   Interface and Android
• Front View:One
• Rear View:Track Reversing and Video
• Customization:Negotiated

General Parameters Andrews

• CPU:1.6G Hz
• Model:Cortex A9 Four dual-core processor,car rule PX3
• RAM DDR3:1GB/2GB
• Flash:Inand standard equipped,8GB or 16GB
• Navigation Storage:TF card
• OS:Android 4.2/4.4
• HVGA:800X480
• WIFI:Support
• BT:support BT4.0
• MirrorLink:Android and OS The android support touch
• Operating Voltage:DC(9-15)V
• Operating Current:Normal 400 mA@12V
• Operating Temperature:-20°C—+70°C
• Storage Temperature:-30°C—+80°C
• Audio Output:Left and right channels,stereo,distribute the signal and analog output
