Android Navigation multimedia for Lexus
1.Specification
| Android Interface Parameter | |
| Items | Descript |
| Brand | Noran |
| Car Screen Size | 7/8/10.3/12.3 " |
| Display | LVDS/GVIF |
| AV Input | One |
| V OUT | V/V1 OUT |
| DTV Input | One |
| Front View | One |
| Rear View | Track Reversing and Video |
| SideView | L AND R |
| CPU | 1.6G Hz |
| Model | Cortex A7 4-core |
| RAM | DDR3 2GB |
| Flash | EMMC 16GB |
| Navigation Storage | TF card(Default 8GB) |
| OS | Android 6.0.1 |
| HVGA | 800X480/1280x480 |
| WIFI | Support |
| BT | Support |
| Cloud Service | Online Automatic Upgrade |
| Operating Voltage | DC(9-15)V |
| Operating Current | Normal 400 mA@12V |
| Operating Temperature | -20°C—+70°C |
| Storage Temperature | -30°C—+80°C |
| Audio Output | Left and right channels,stereo,distribute the signal and analog output |
| USB | online download music to outside USB disk. |
2.Features
- 1. Support to upgrade to latest version online by mcu
- 2. Enable to control Android system by Factory mouse or sensor touch board
- 3. Sounds and picture can be switched at the same time
- 4. Come with 2 Video Inputs
- 5. Support Front camera , Rear Camera , Left-side camera , right-side camera optional
- 6. Enable to start Android system in 1s .
- 7. Support resistive touch and capacitive touch at the same time
- 8. Support to activate side cameras by steering wheel or turn light
- 9. Navigation sounds come from factory speaker ( in knob version )
- 10. Full plug and play
- 11. Friendly Design
- 12. Enable to adjust volume by steering wheel .
- 13. Support voice search by factory microphone

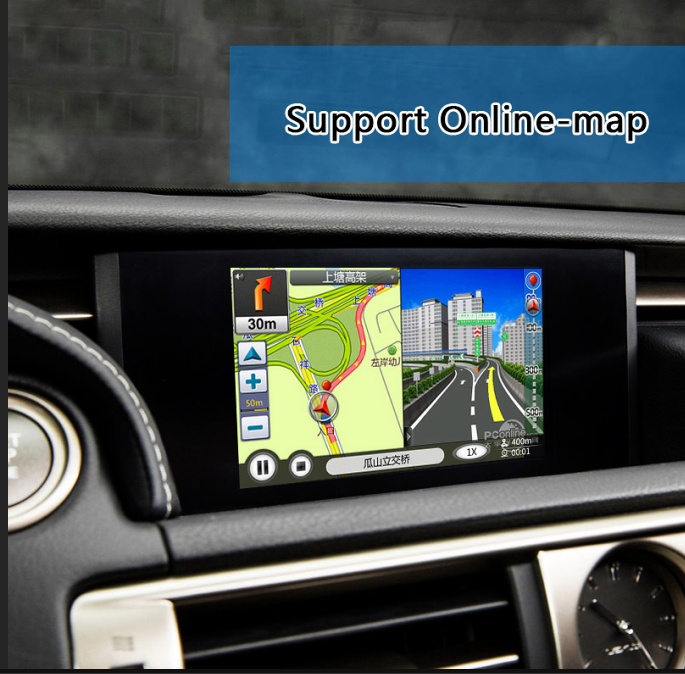

- 14. Online map(Google/ Waze), offline(IGO and offline map data on TF card)
- 15. 4K video is supported to play
- 16. High quality music is supported(WAV etc high quality music format)
- 17. Online YouTube random play and browsing, no limits.
- 18. XVR/ADAS Optional. (USB video recorder, support storage, play ） ADAS support car lane watch, car ignition alarming, distance and speed remind), it’s a optional accessory, and can fit with our DVR only .
- 19 .Support television signal input , outside video signal input, sound and image synchronic HD display.
- 20. Special functions: random map setting is supported. Come with front rear and left right cameras signal input . Support factory rear camera. e side view cameras can be activated by turning steering wheel or turning light.
- 21. App: download any apps from Google play store and google play, no need to worry about internal massive storage space.
- 22.Switch to Android system: from AUX to Android, for non AUX version, long press the hold phone button to switch to Android system. You could also switch different music track and volume by steering wheel.
- 23. Android OS: we can use knob, mouse or touch sensor board to control Android system. It can be operated by resistive and capacitive touch screen too.
- 24. Miracast for both Android & IOS smart phone.

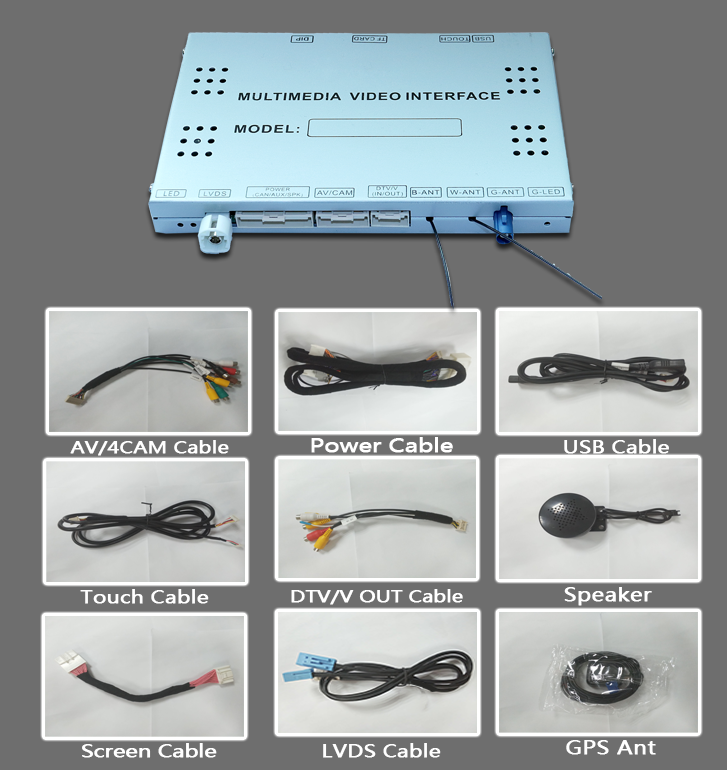

3.products accessories
| Products name | picture | quantity |
| Interface box | 1 | |
| POWER CABLE | 1 | |
| GVIF CABLE | 1 | |
| AV/CAM IN CABLE | 1 | |
| DTV/V OUT CABLE | 1 | |
| TOUCH CABLE | 1 | |
| USB CABLE | 1 | |
| SCREEN CABLE | ||
| SPK | 1 | |
| GPA ANT | 1 | |
| Optional function | ||
| Resistive/ capacitive touch screen | 1（choose one of them base on the car） | |
| DVR/ADAS | 1（1080P USB specially use DVR） | |

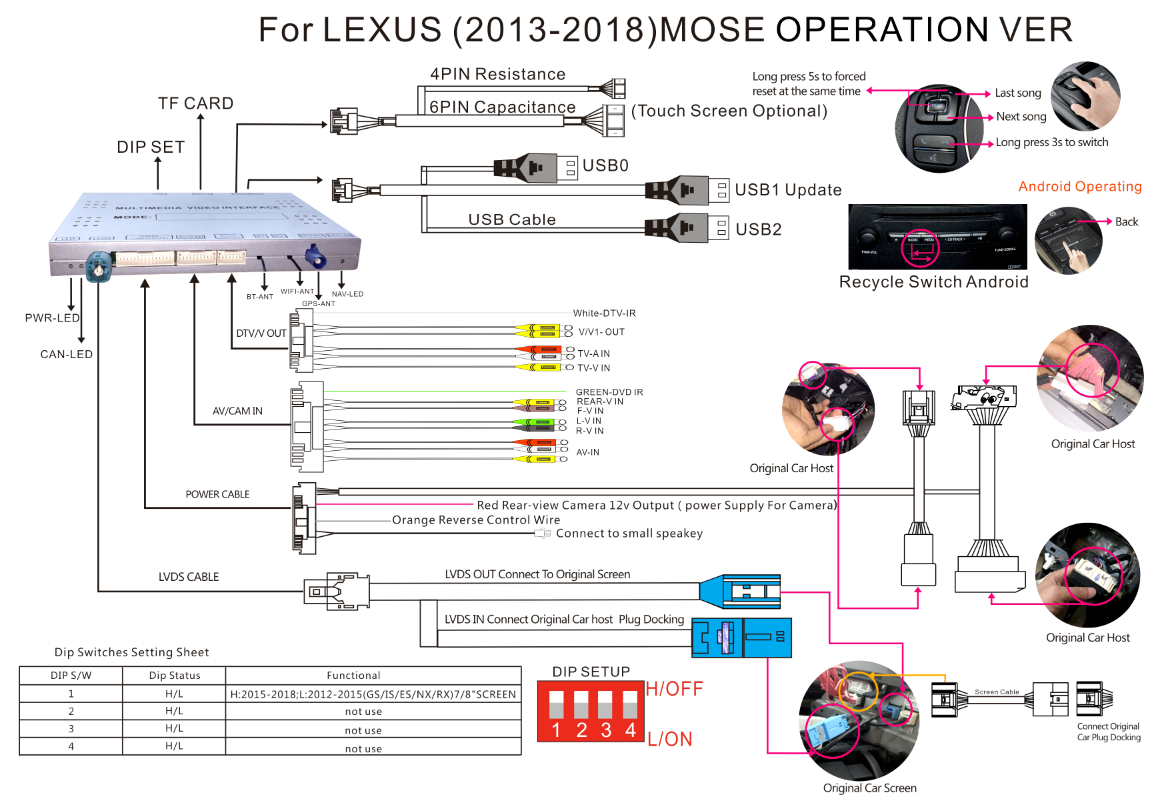

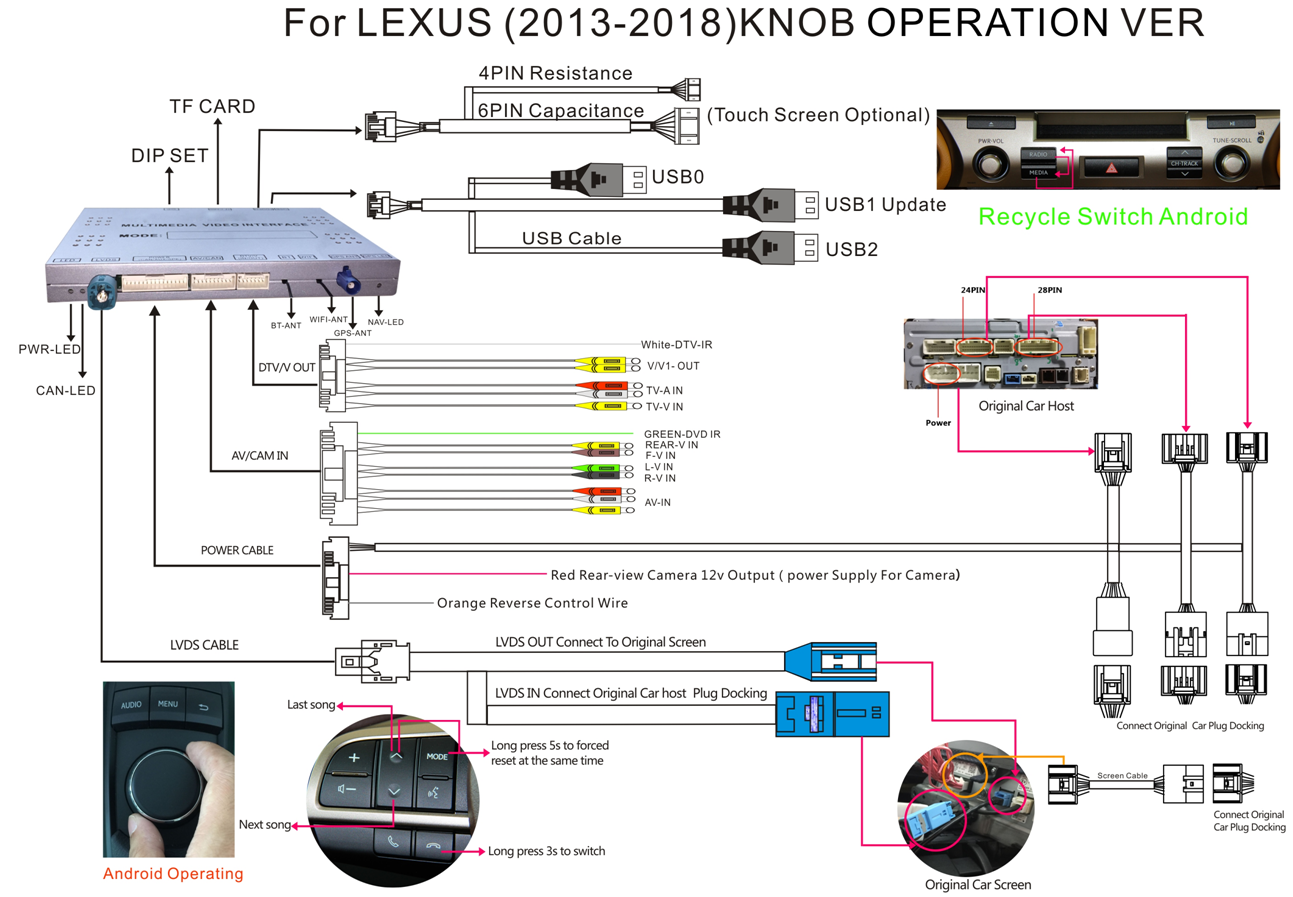

4.Installation Diagram
