Features

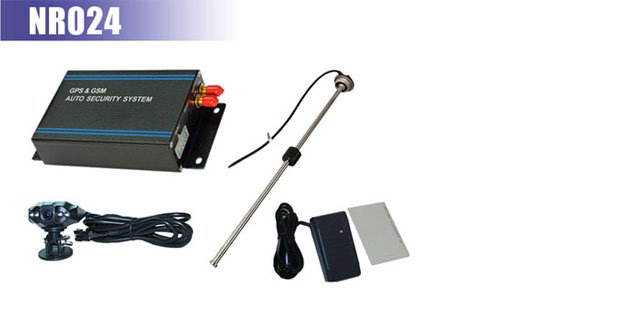

It is an advanced GPS fleet tracker for vehicles. NR024 can upload images and fuel curve to GIS real time vehicle tracking system. With extra RS232 port, the tracker can communicate with some accessories if necessary, such as LED Advertise Screen, RFID, etc.

Functions

• ·GPS Tracking & GPS Navigation
• ·GSM(GPRS) Wireless Communication
• ·Take Photo by digital camera
• ·Fuel Monitoring & Audio Monitoring
• ·Engine remote control
• ·Located by GPS & A-GPS (LBS--Location Based Service)
• ·Real-time upload location information via time/distance interval
• ·Geo-fence, Over-speed Alert & SOS function
• ·Vehicle Status Monitoring (Position,ACC,Speed etc.)

Specification

• ·GPS module: SiRF Star3
• ·GSM module: Quad-band 850/900/1800/1900Mhz, SIMCOM900D
• ·Working Voltage: DC 6.3V-40V
• ·Working current:: 60mA-150mA
• ·Working temperature: -40℃-85℃
• ·Humidity: 10%-90%
• ·Digital camera: infrared 150w pixel
• ·Backup battery: 400mA
• ·A/D Port: 1
• ·General I/O Port: 3
• ·RS232 Extended: 2

Package:

Gift package/compressed package with GPS Tracker (NR024), SOS button, connection cable, relay, Microphone, GPS antenna, GSM antenna, Camera and English User manual
