• 1.Wireless device, free installation
• 2. 5000mAH battery, 30 days stand by
• 3. Strong magnetic stick on metal
• 4. Vehicle and asset real time location
• 5. Geo-fence alarm
• 6. Sleep mode save power
• 7. History line check
• 8. Audio Monitor
• 9. GPS/LBS tracking, Double-Positioning
• 10. real time location, track by SMS/web/android app

Real time location tracking:
Track asset and vehicle location on real time by SMS, PC website tracking system and android app

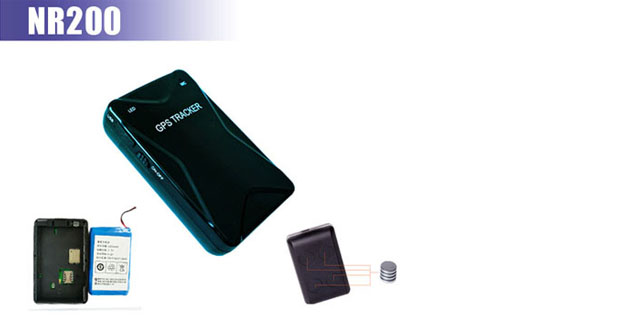

Strong Magnetic Cover:
with the strong magnetic rear cover, the device can be stick on the container, vehicle bottom, easy hidden. Free installation

30 Days Long Life Battery:
5000mAH battery, 30days stand by time with sleep mode

Sleep mode:
Set sleep mode to save power, make it can use long time.

Geo fence alarm / drive area limit alarm:
Set up a Geo -fence for the GPS to monitor it`s movement area, the GPS will alarm when vehicle out of this area.

Over speed alarm:
Real time remote monitor driver behavior, send alarm information to manager when vehicle over speed.

Audio monitoring:
You can call the GPS device and listen the vehicle inside voice when driver unknown. The GPS device not vibrate or ring.

Mileage statistics:
Calculate vehicle driving mileage in a period of time.

SMS tracking location:
Remote real time get vehicle location by SMS. Send an SMS to the GPS, it will reply a link with vehicle location and speed information.

History daily report:
Check the vehicle work information in whole day, the location in anytime, the speed, time, ACC condition, stop time, stop place etc.

Android app:
You can real time tracking vehicle on our android app, one account can check all of your vehicles.

UDP / TCP / HTTP:
Vehicle GPS tracker device support communication protocol: UDP, TCP and HTTP. If you have your own tracking server, our device can work on your server.

Vehicle history trace line :
You can check the vehicle history drove line on last 90days, choose every day and time you want, you can see the vehicle location, speed, mileage days ago.

GPS & A-GPS(LBS—location based service):
Using Global Satellite Positioning technology, LBS(Location Based Service) technology(when it cannot location via GPS, the device will get the location information via LBS automatically)

Specification

• ·Size:95*60*25mm
• ·Weight:125g
• ·Battery:5000mAH, 30days stand by
• ·Working Voltage:9-36V
• ·Working Temperature:-20℃ - 70℃
• ·Humidity:20%-80%RH
• ·GSM band:850MHz/900MHz/1800MHz/1900MHz
• ·GPS module:Sirf Star IV
• ·Communication protocol:TCP / UDP / HTTP
• ·GPS Sensitivity:-159dBm
• ·GPS Positioning Accuracy:10m
• ·GSM positioning accuracy:50-200m
• ·Speed accuracy:0.1m/s
• ·Cold boot:<38sec
• ·Warm boot:<32sec
• ·Hot boot:<2sec
• ·Altitude limit:18000m
• ·Velocity limit:515m/s
• ·Current:~60mA(12V DC) ~35mA(24V DC)
• ·Battery:5000mAH, 30days stand by
• ·Stand by Current:<50mA
• ·Accessories Device: 5000mAH battery, magnetic cover, Adapter, Cable for charging, manual
